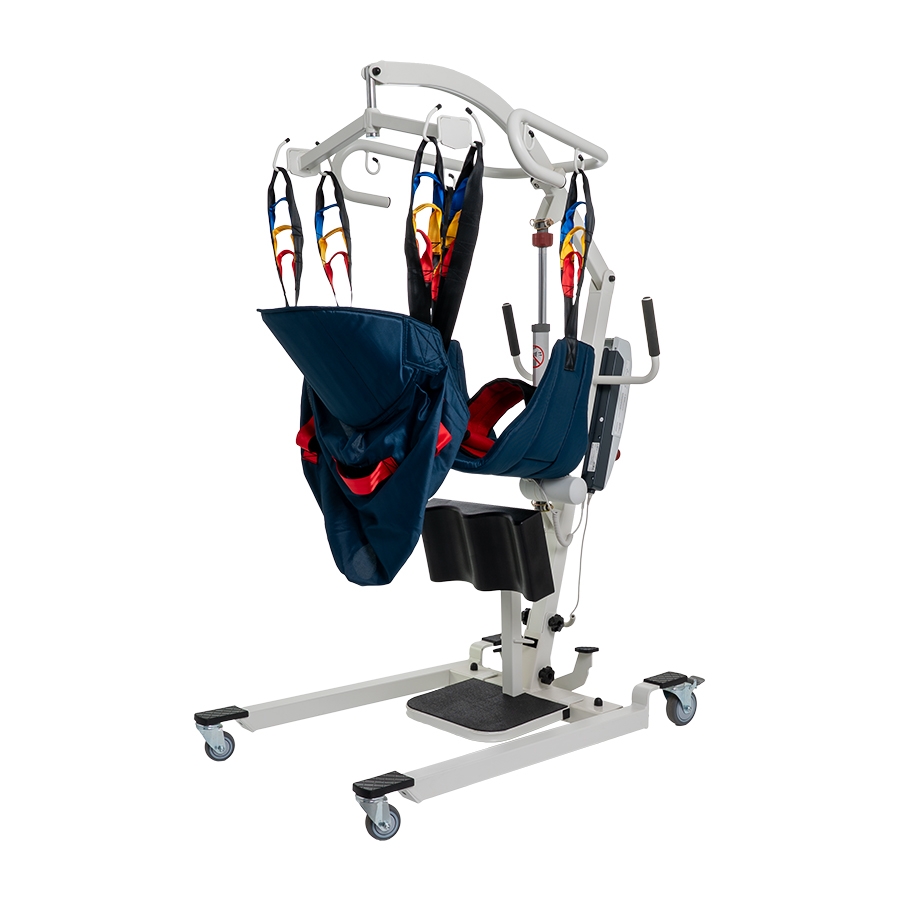

TYTAN 2.0

TYTAN 2.0

Dual function lift [DRVF15]

PRODUCT CHARACTERISTICS:

  • has two functions:
    - patient lifting and lowering (lift)
    - uprighting assistance
  • convenient U-shaped transport handle
  • very easy folding and unfolding
  • electric control by wired remote control

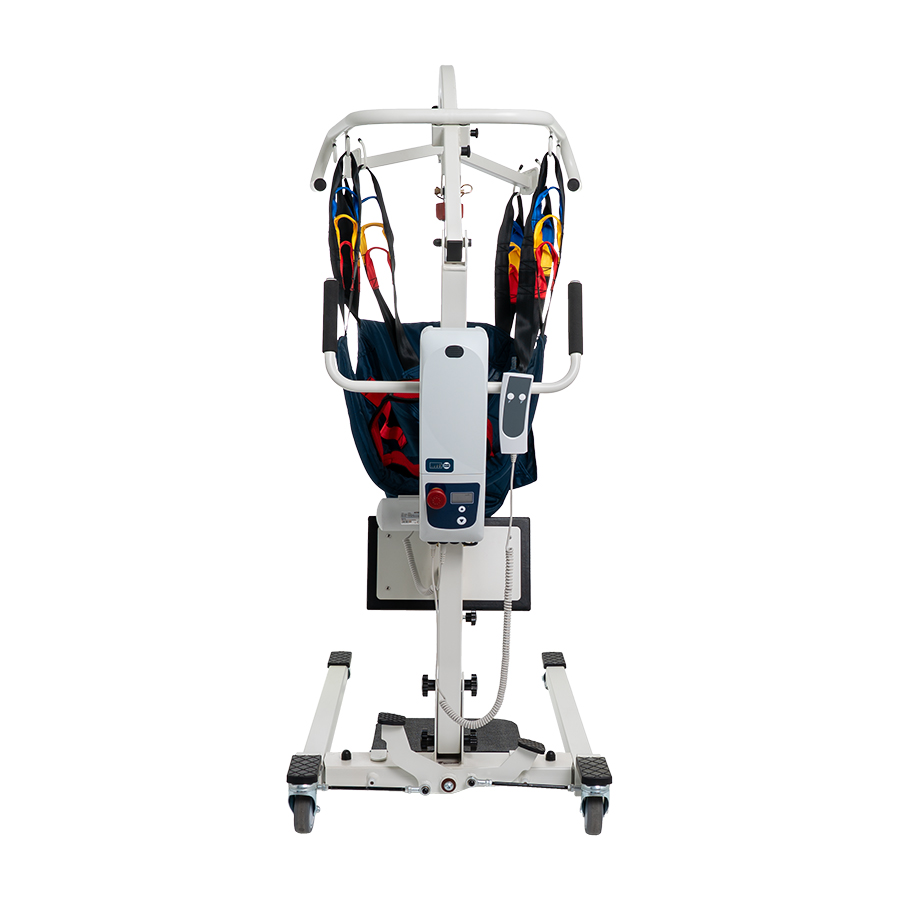

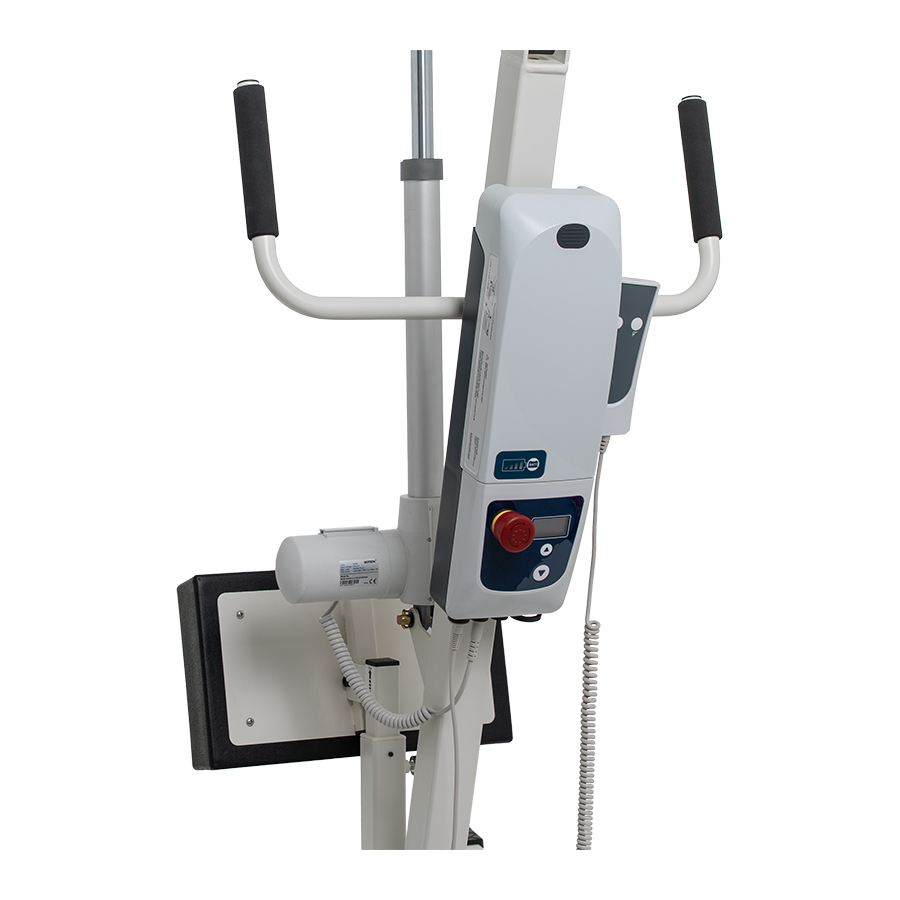

  • control panel with emergency stop system and possibility of operation without remote control
  • equipped with a manual lowering safety system allowing for safe, mechanical lowering of the patient in the event of battery discharge
  • actuator from a certified manufacturer

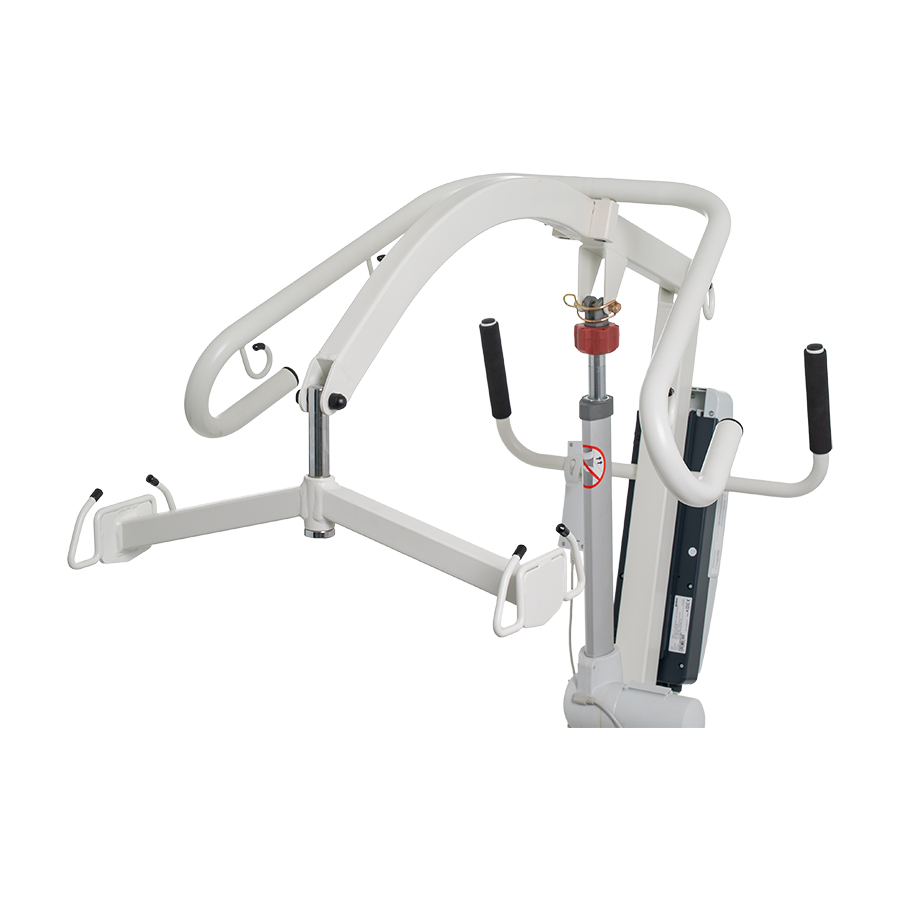

  • possibility of detaching the arms: lifting and verticalising
  • front swivel wheels
  • rear swivel wheels equipped with brake
  • adjustable width of base arms

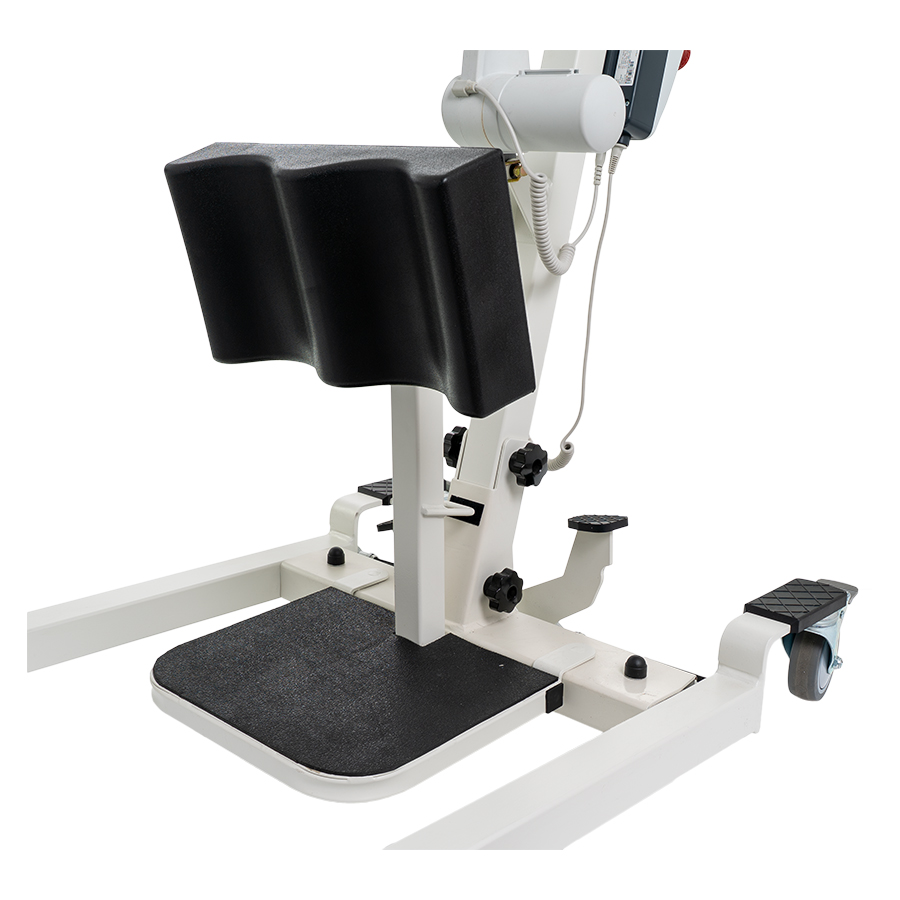

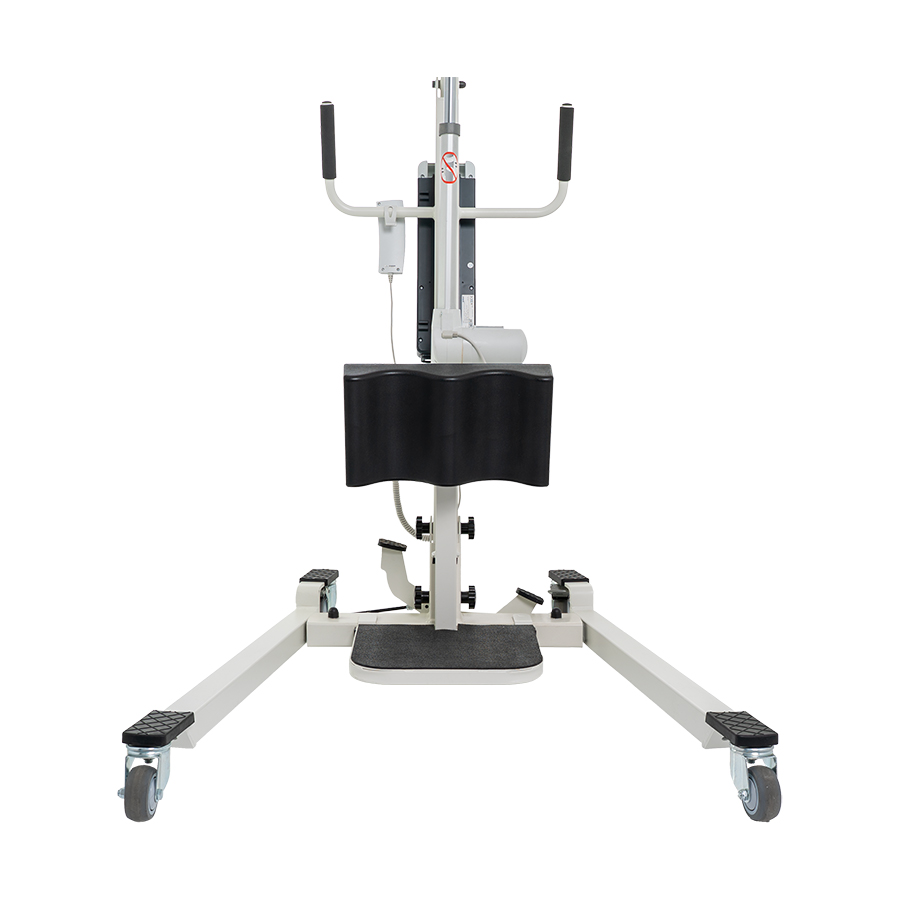

  • adjustable knee support
  • removable footplate
  • standing belt included

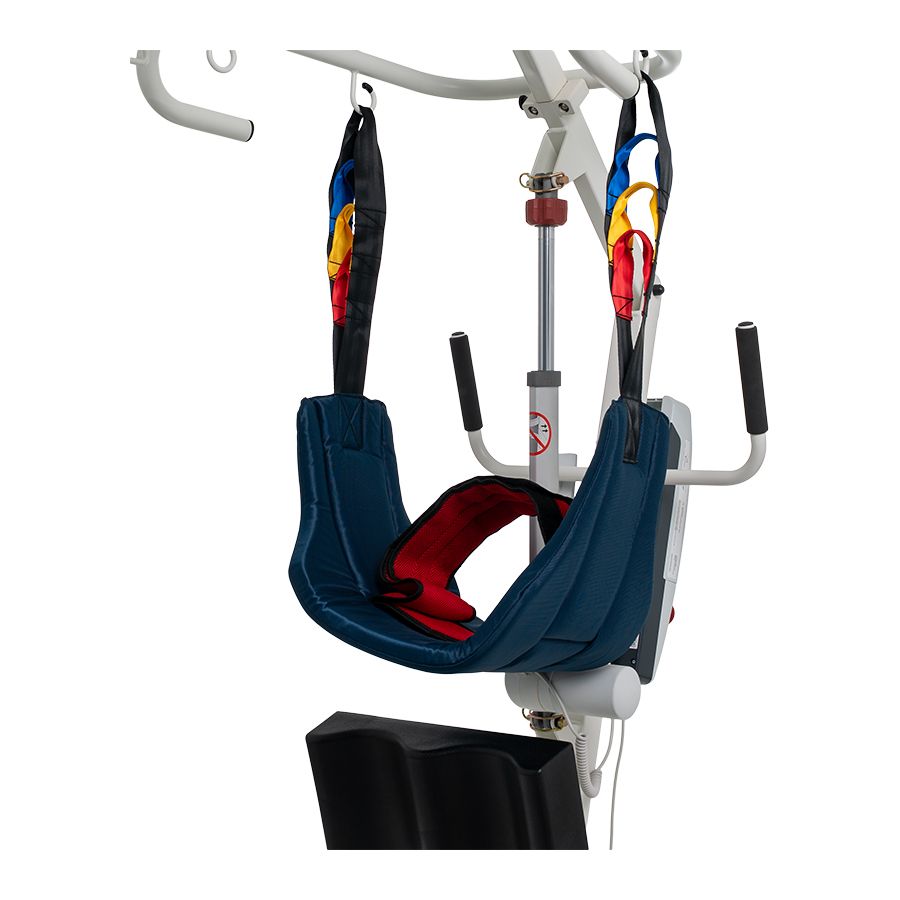

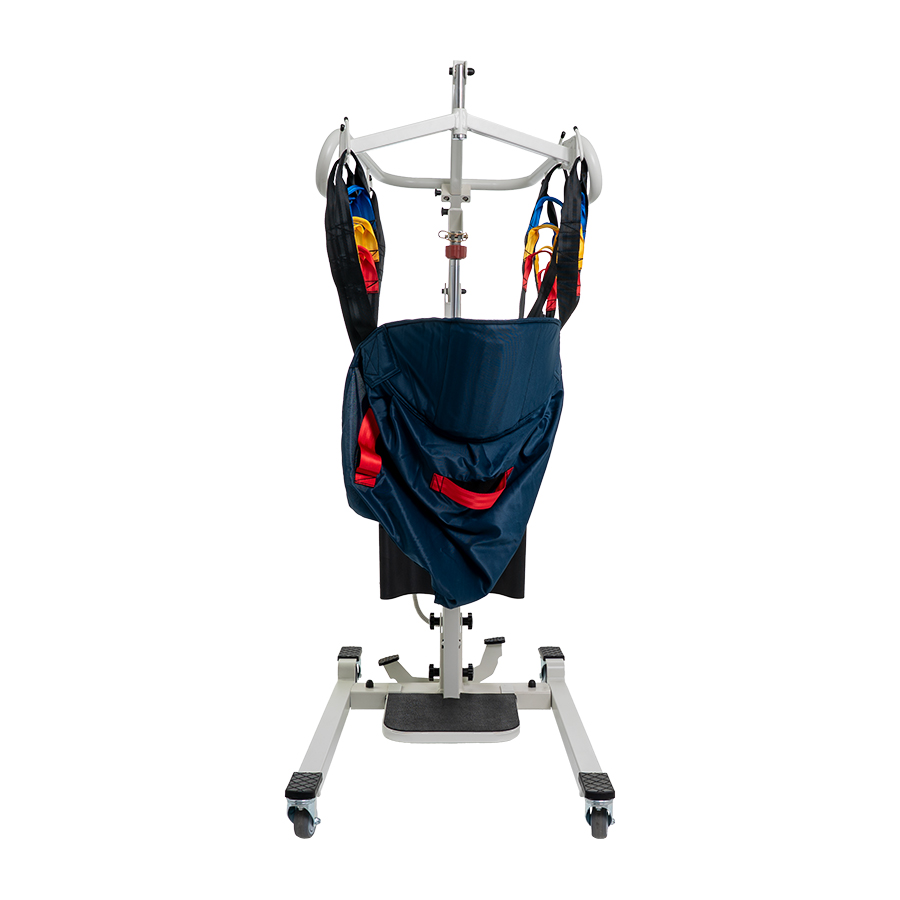

  • wide range of comfortable slings (to choose from) to ensure proper back stabilisation:
    - with head stabilisation for everyday use
    - carrier with head stabilisation for bathing

INTENDED USE:

A product to assist in hygiene activities for people with disabilities. The transport lifts described are intended for the transfer of only one patient at a time. The patient should be under the supervision of a trained caregiver when lifting and for safety reasons during transport. A push handle is used to move the lift each time. Lifts can also be used for elderly care.

 Length (cm)  105
 Folded arm width (cm)  66,5
 Width of spread arms (cm)  88,5
 Height (cm)  132
 Lifting range (cm)  87 - 175
 Uprighting range (cm) 102 - 165
 Lifting speed (mm/s)  8,3
 Height of the base arms (cm)  11,5
 Diameter of front wheels (cm)  7,5
 Diameter of rear wheels (cm)  10
 Approximate number of lifting and lowering cycles  60 - 80 cycles
 Maximum load (kg)  135
