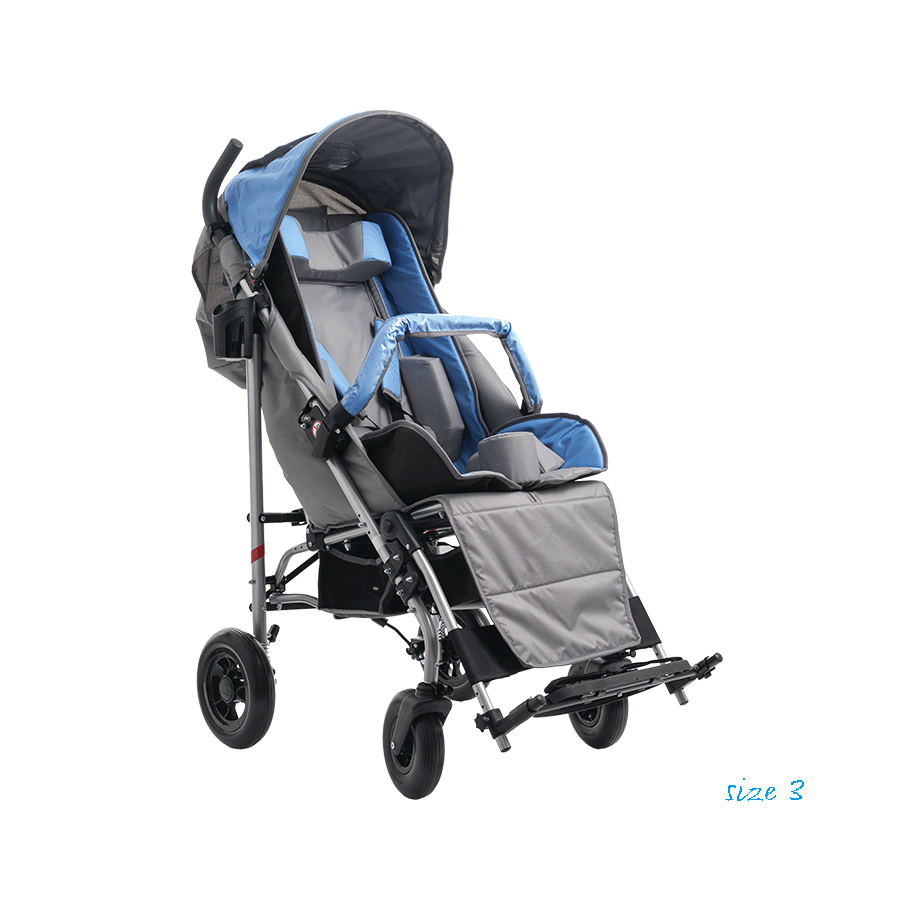

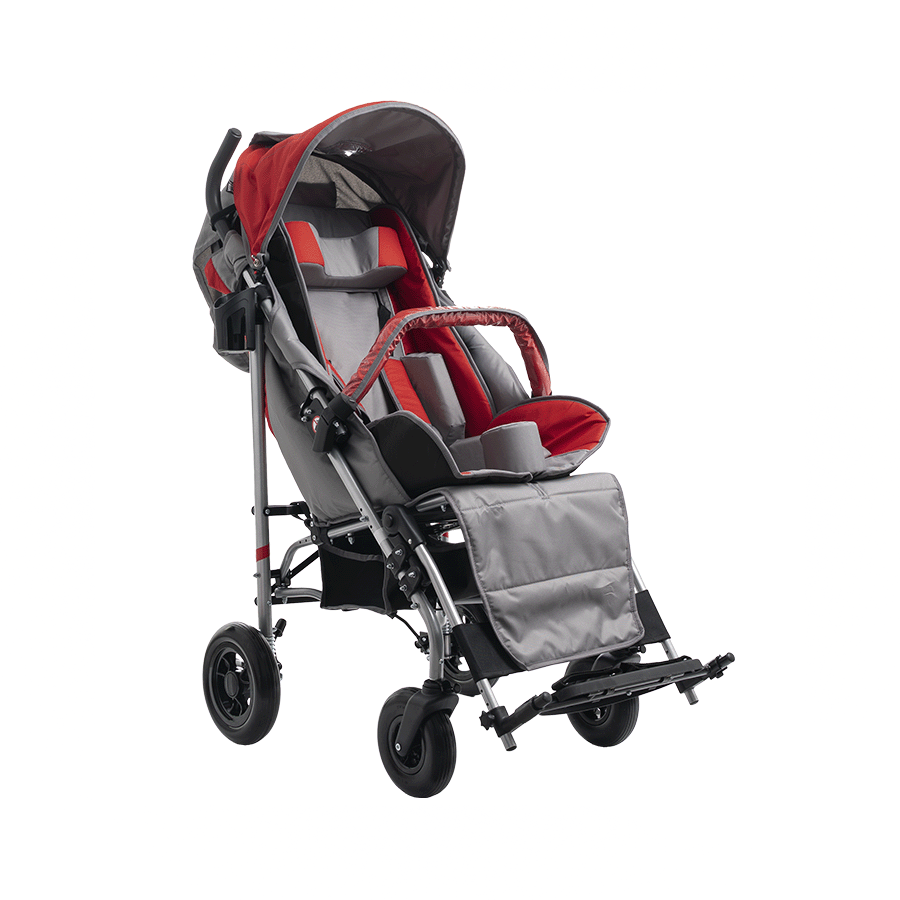

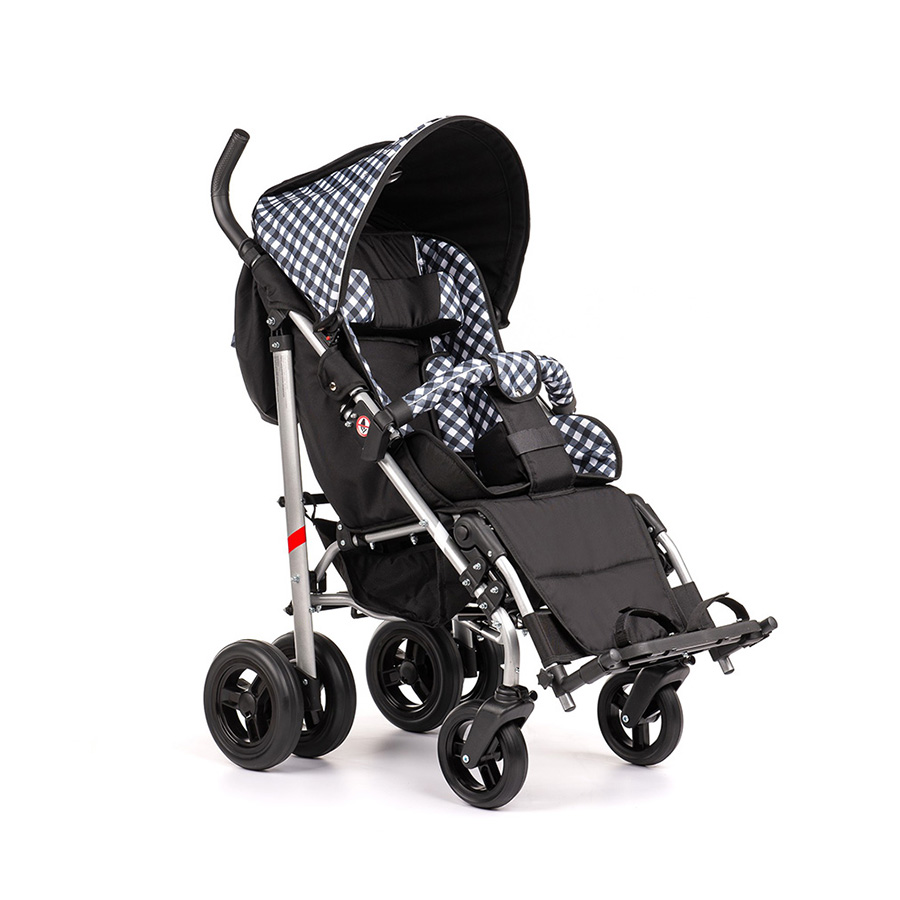

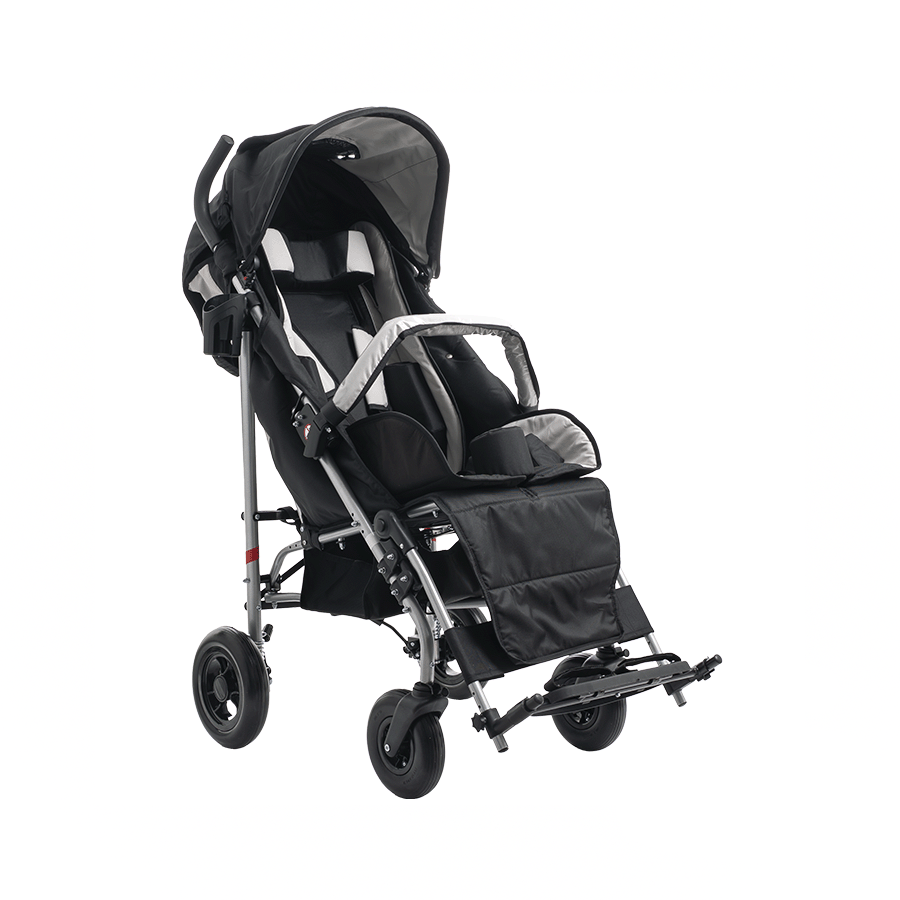

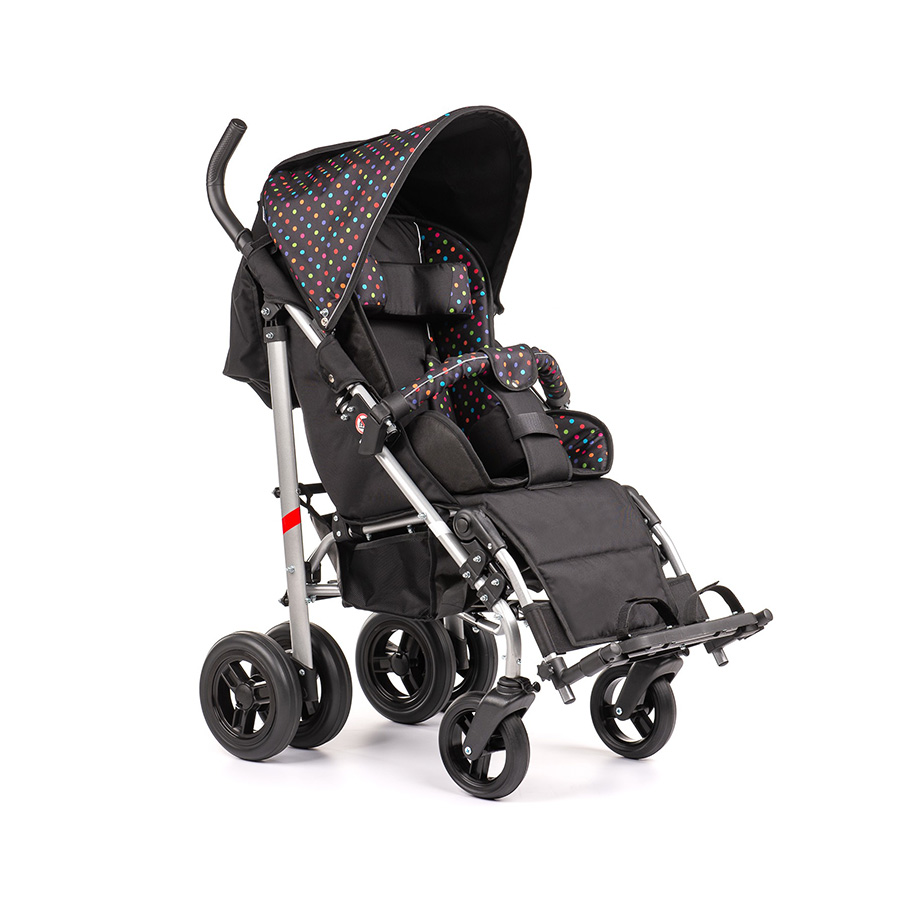

Umbrella Children Rehabilitative Stroller [DRVG0C]

PRODUCT CHARACTERISTICS:

  • foldable, aluminum frame with reinforced steel elements
  • upholstery made of high quality fabric attested by certificates of quality (OEKO-Tex, SGS)
  • smoothly adjustable backrest tilt angle
  • front wheels and rear wheels made of PU
  • lockable front wheels
  • front wheels attached via quick release system with independent brakes
  • abduction wedge, front safety barrier covered with fabric and 5-point belt
  • side supports and lumbar roller
  • plastic footrest platform with gradual height adjustment (every 2.5 cm)
  • footrest adjustable tilt angle with feet stabilizing straps
  • headrest with height adjustment
  • parent window in the canopy
  • swivel handles with adjustable height
  • standard equipment: canopy, shopping basket, cup holder, rain cover, sleeping cover
  • optional equipment: umbrella, tray
  • available in wide range of colors
  • available in 3 sizes: 1, 2 and 3

MAIN DIFFERENCES BETWEEN SIZES:

  • front wheels diameter in sizes 1: 184mm, in size 2: 177mm, in size 3: 178mm
  • rear wheels diameter in size 1: 233mm, in size 2: 226mm, in size 3: 253mm
  • backrest angle adjustment range in sizes 1 and 2: 90 - 130 degrees;
    size 3: 90 - 112 degrees
  • brakes in size 3: rear brake pin, single wheels;
    sizes 1 and 2: rear foot brake plate, double wheels

INTENDED USE:

The stroller is designed for children with disabilities and / or dysfunctions movement activities as a result of damage of the CNS Central Nervous System. It can be used in children with CP Cerebral Palsy, myelomeningocele, muscle disorders, dysfunctions of the lower limbs.

CONTRAINDICATIONS:

Contradictions against sitting position.

  size 1 size 2 size 3
Seat width (mm) 300 350 400
Seat depth (mm) 250 300 400-450
Backrest height (mm) 500 540 750
Max stroller width (mm) 550 590 630
Stroller length (mm) 880 1000 1050
Max stroller height (mm) 1140 1160 1260
Dimensions when folded ( length x weight x height (mm) 1190x370x440 1220x440x440 1280x440x500
Stroller weight (kg) 13,5 15 19
Max child weight (kg) 30 45 75
