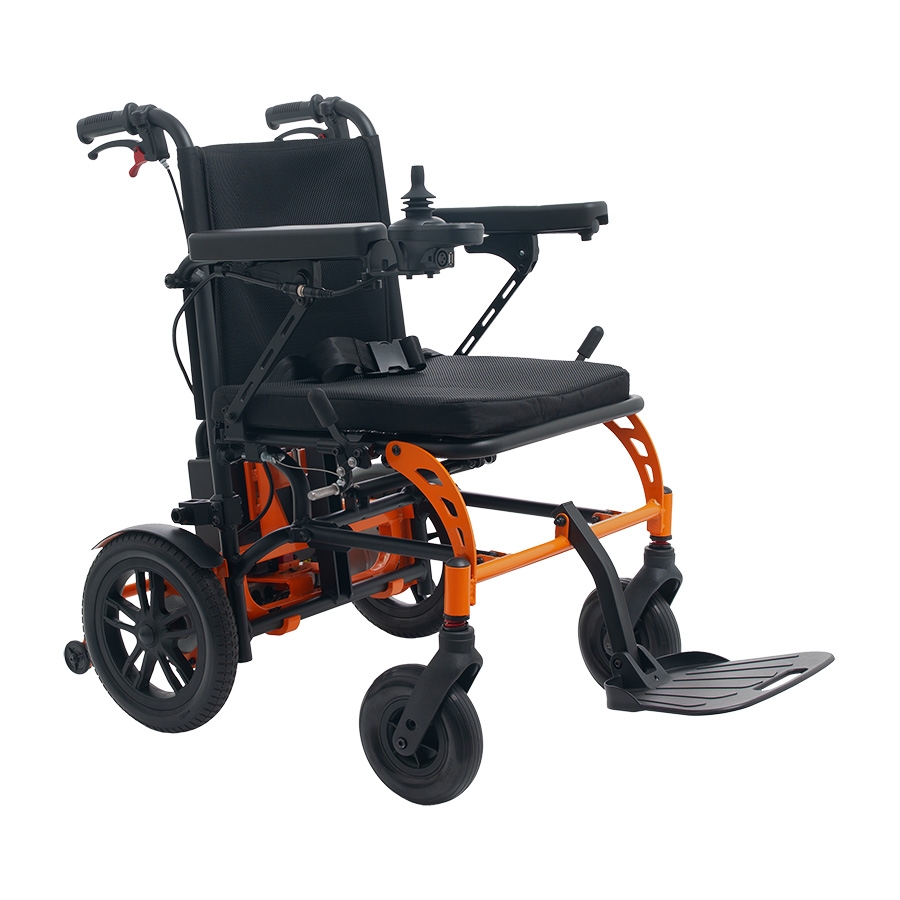

TWIST Power wheelchair
PRODUCT CHARACTERISTICS:
- innovative design
- 2-function frame:
- electric-powered wheelchair

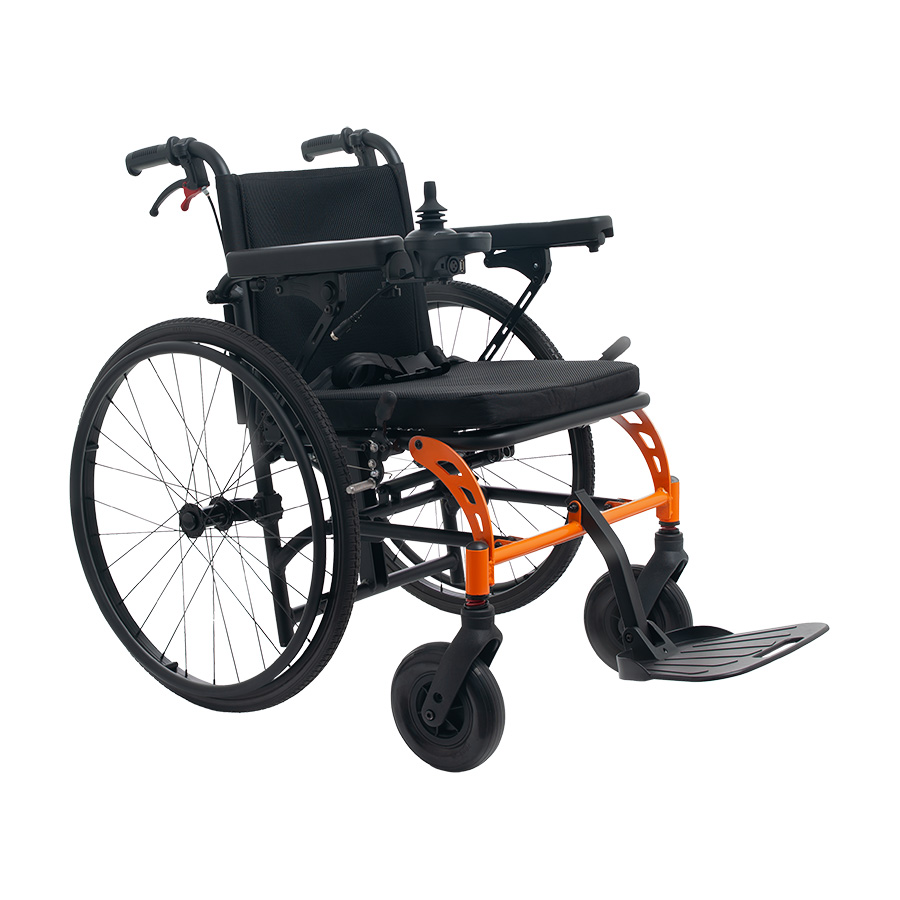

- manual wheelchair - option to replace the electric drive with 24” wheels equipped with a quick release system
- folding frame without tools for easier transport and storage
- low weight of the wheelchair in both electric and manual versions
- soft and breathable upholstery
- detachable battery pack allowing charging outside the wheelchair
- option to change joystick mounting side
- electromagnetic brakes
- caregiver brakes in manual mode
- clutch enabling disconnection of electric drive
- flip-up armrests
- anti-tip wheels
- front wheels: 8” (PU)
- rear wheels: electric drive: 12” (PU), manual drive: 24” (PU)
- suspension with front shock absorption
INTENDED USE:
The product is intended for disabled people with musculoskeletal conditions to increase their mobility.
| Max speed (km/h) | 10 |
| Seat width (cm) | 46 |
| Seat width between armrests (cm) | 44 |
| Seat depth (cm) | 43 |
| Backrest height (cm) | 42 |
| Total height of the wheelchair (cm) | 86,5 |
| Height of armrest from seat (cm) | 22 |
| Height of seat with cushion from ground (cm) | 49,5 |
| Total width of the wheelchair (cm) | 62,5 |
| Overall length of wheelchair with footrests (cm) | 108 |
| Dimensions when folded (cm) | 99x60x38 |
| Weight of wheelchair with/without batteries (kg) | 24,2/27,1 |
| Height of wheelchair for transport (cm) | 38 |
| Front wheel size | 8'' PU |
| Rear wheel size (electric drive) | 12'' PU |
| Rear wheel size (manual) | 24'' |
| Turning radius (cm) | 78 |
| Range* (km) | 15 |
| Max user weight (kg) | 125 |
| Batteries (Ah) | 13 |
| Motor (W) | 150 (brushless motor) |
* Speed, maximum distance of the vehicle depends on the user weight, tire pressure, battery load, battery capacity and the terrain on which the vehicle is used. The estimated range refers to laboratory conditions.
