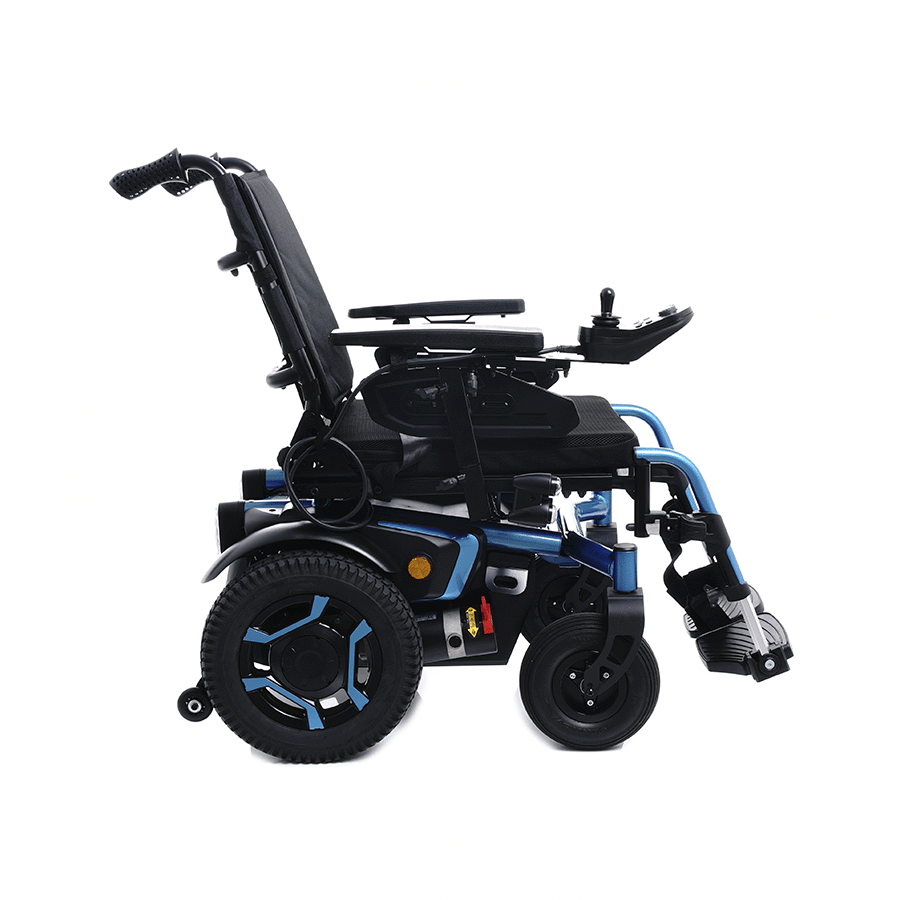

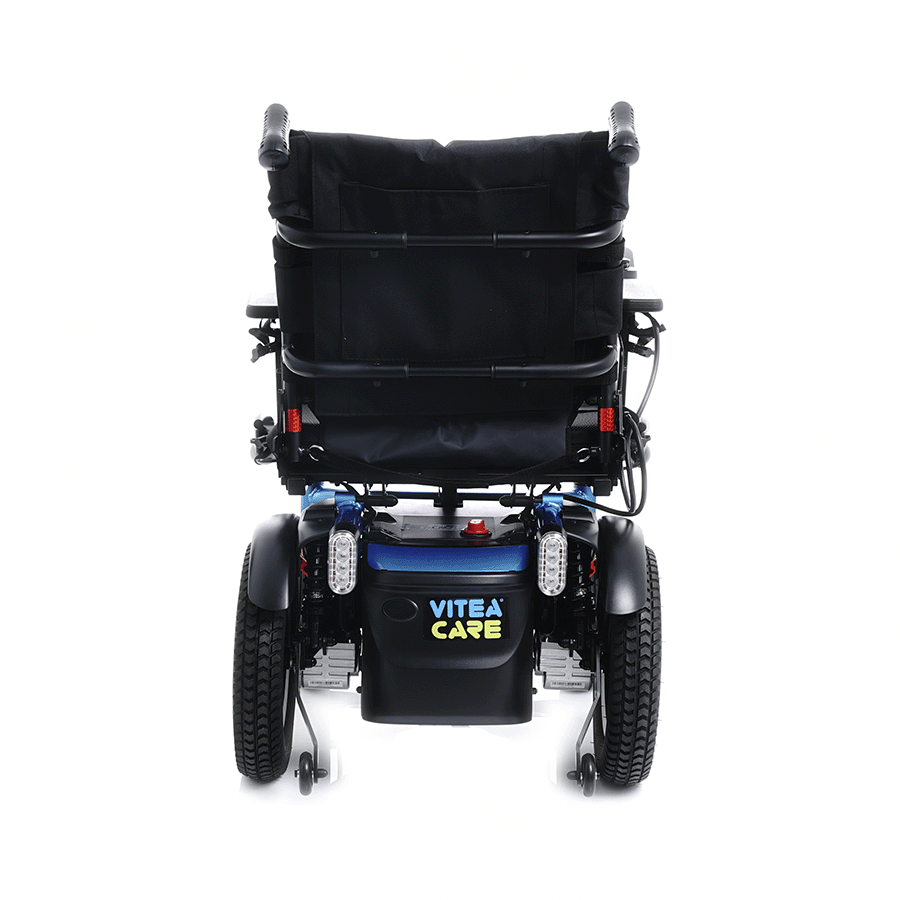

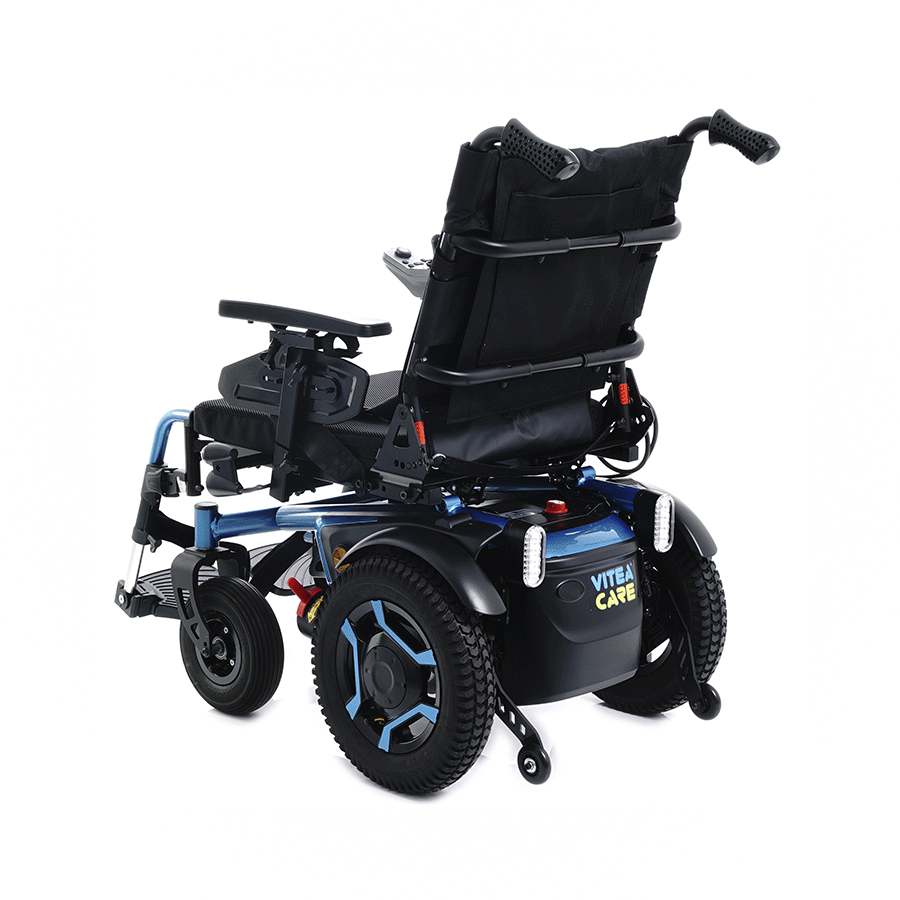

STAR Power wheelchair model Blu
PRODUCT CHARACTERISTICS:
- seat width: 16”, 18”
- shock-absorbing frame
- adjustable seat depth and width (430-480 mm)
- manually adjustable seat angle 0-15°
- manually adjustable backrest angle 90°-130°
- soft and breathable upholstery
- adjustable height and width of armrests
- removable and swivelling footrests
- footrests adjustable length

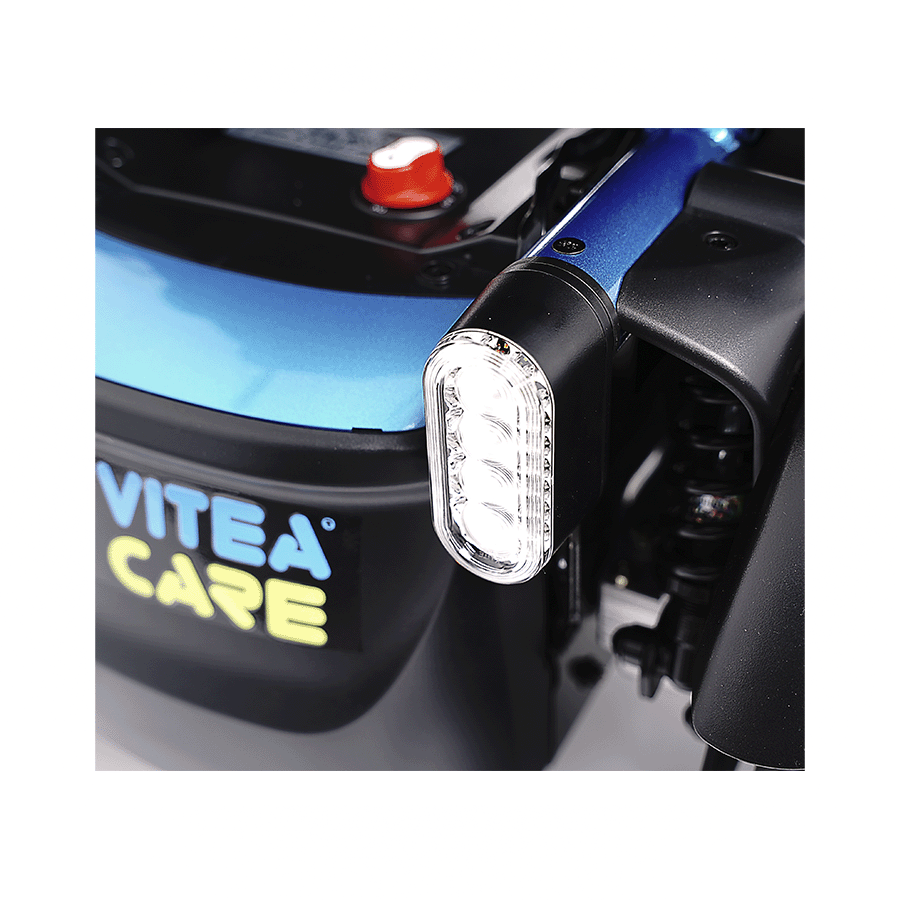

- front lighting

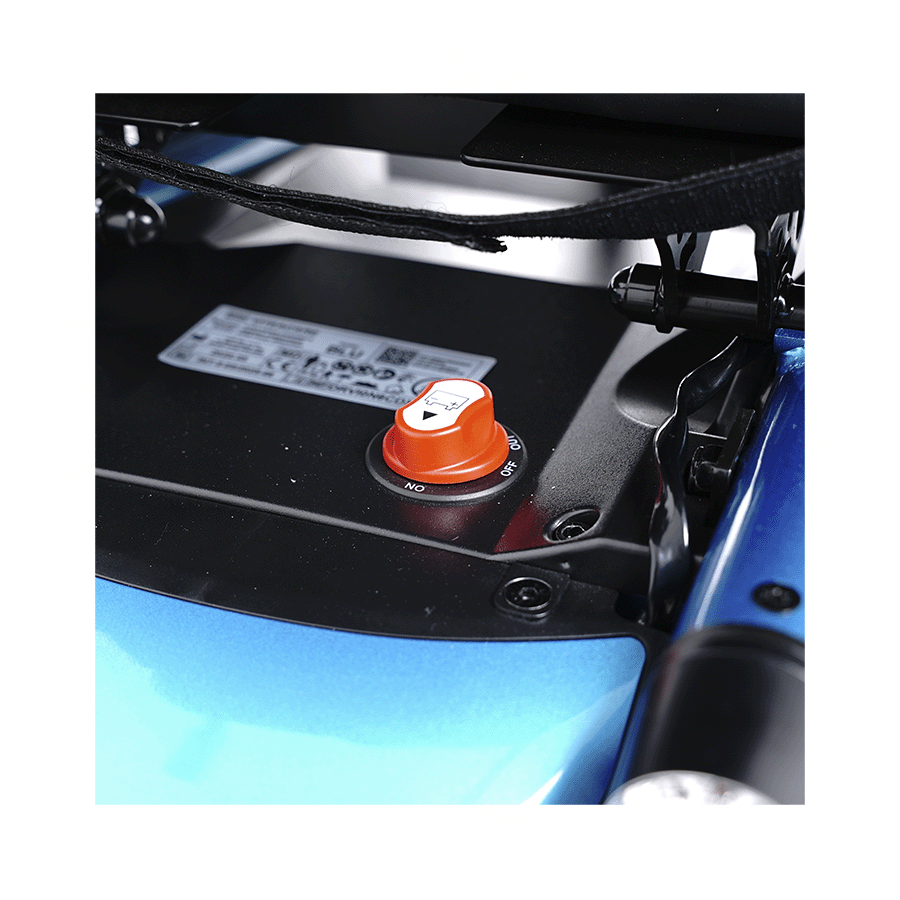

- disconnection of electric drive

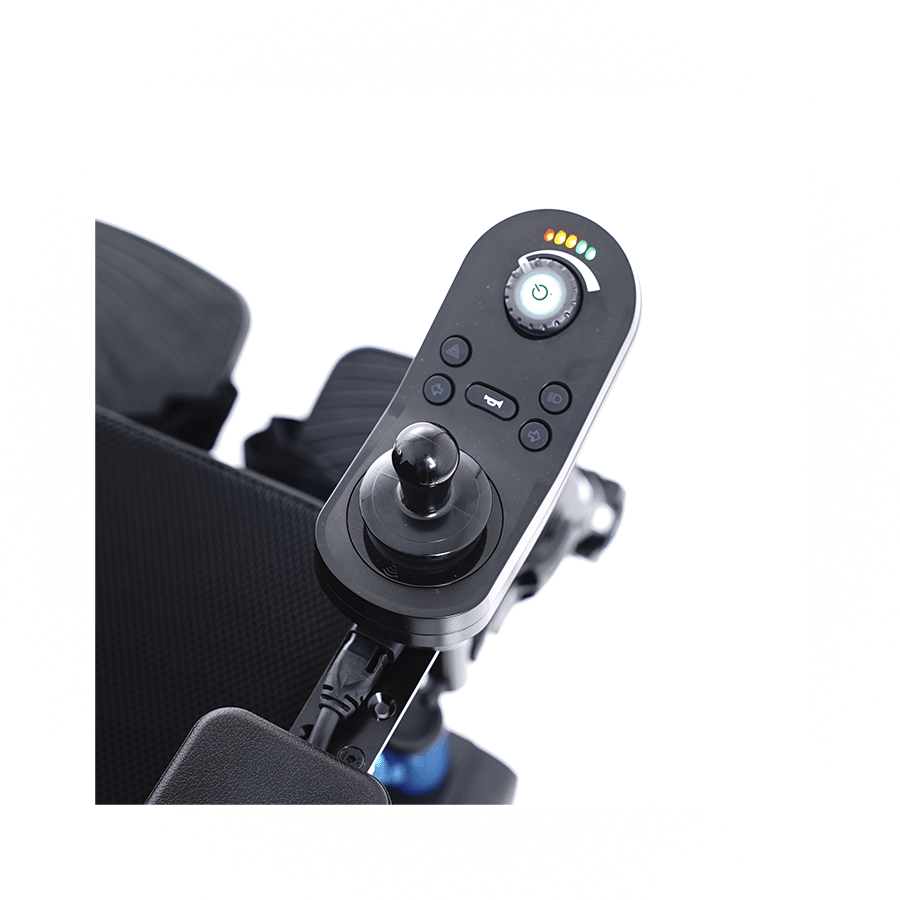

- control unit can be switched from right to left
- horizontal adjustment and tilting of the control unit
- anti-tip wheels
- aluminium rims
- handles for the caregiver
INTENDED USE:
The product is intended for disabled people with musculoskeletal conditions to increase their mobility. Designed for people with paralysis and paresis, amputees, people with stiff lower limbs and those who periodically need to use a wheelchair.
| Max speed (km/h) | 10 |
| Seat width (cm) | 43-48 |
| Seat depth (cm) | 43-48 |
| Backrest height (cm) | 52 |
| Total height of the wheelchair (cm) | 121,5 |
| Height of armrest from seat (cm) | 17 - 29 |
| Seat cushion thickness (cm) | 7,5 |
| Height of seat with cushion from ground (cm) | 54 |
| Total width of the wheelchair (cm) | 58 |
| Overall length of wheelchair with footrests (cm) | 182 |
| Weight of wheelchair with/without batteries (kg) | 106,5/76,5 |
| Height of wheelchair for transport (cm) | 85 |
| Front wheel size | 9'' |
| Rear wheel size | 14'' |
| Max obstacle to be overcome safely (cm) | 4,5 |
| Turning radius (cm) | 90 |
| Range* (km) | 30 |
| Max user weight (kg) | up to 136 |
| Batteries (Ah) | 52 (Gel) |
| Motor (W) | 2x340 |
* Speed, maximum distance of the vehicle depends on the user weight, tire pressure, battery load, battery capacity and the terrain on which the vehicle is used. The estimated range refers to laboratory conditions.
